System 3400
The System 3400 is a lightweight, pen-style surgical power system built for delicate procedures in orthopedics, maxillofacial, and neurosurgery. Its modular drivers and sagittal saw deliver speed, control, and adaptability — all in a compact, cordless form.

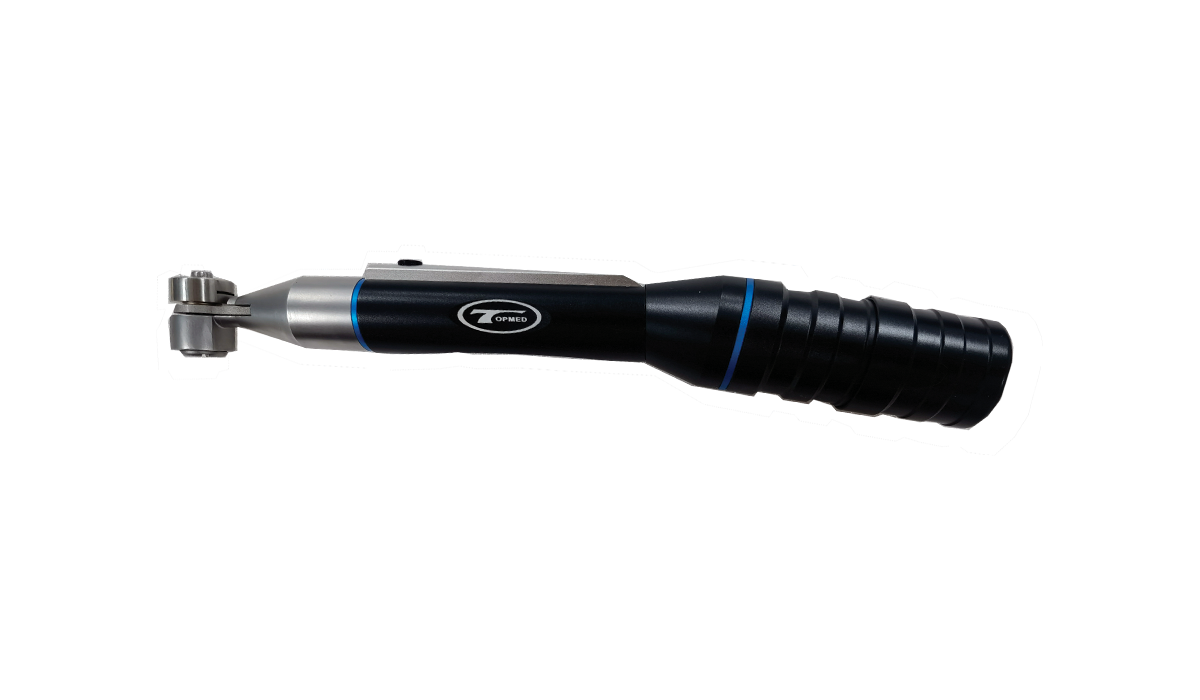

TM3401
Smart sagittal saw
0-15000 osc/min

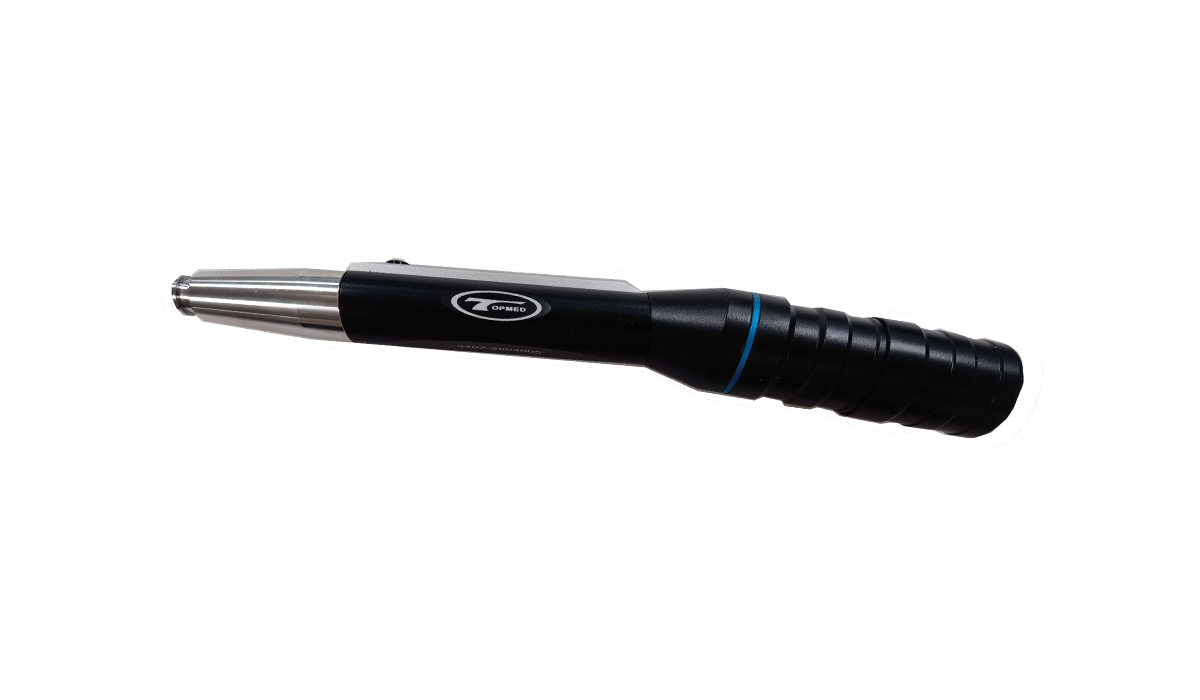

TM3402-II
Smart driver I-B
0-1100 rpm 0.1Nm

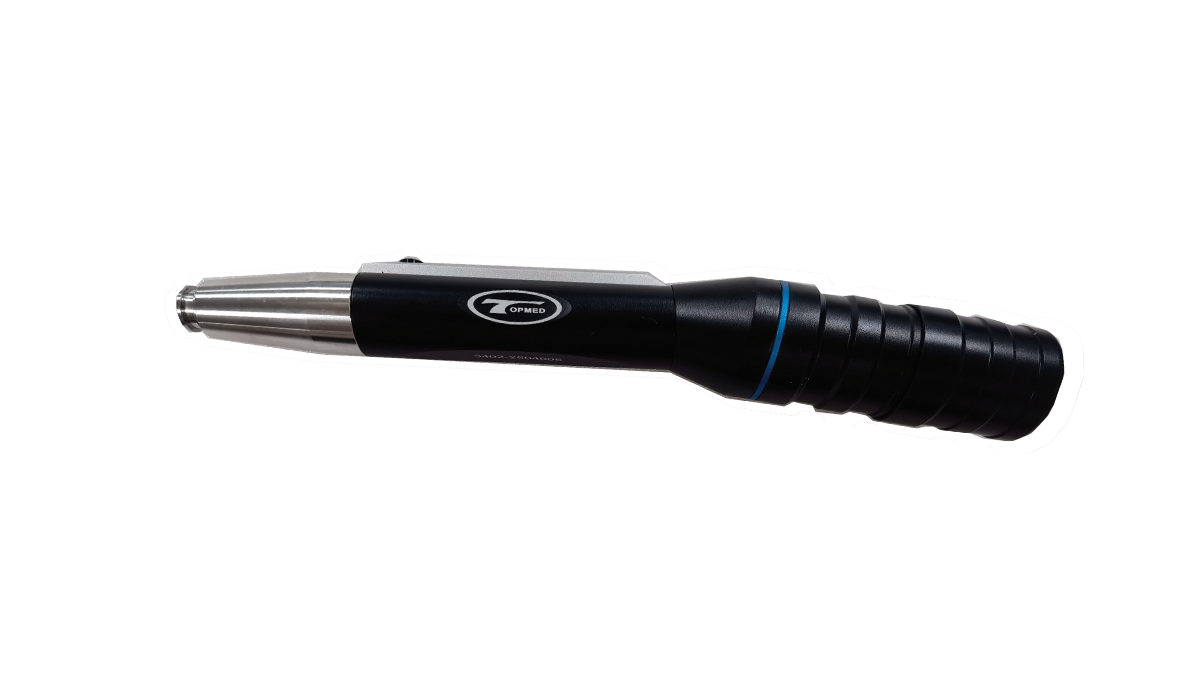

TM3402
Smart driver I-A
0-1100 rpm 0.1Nm

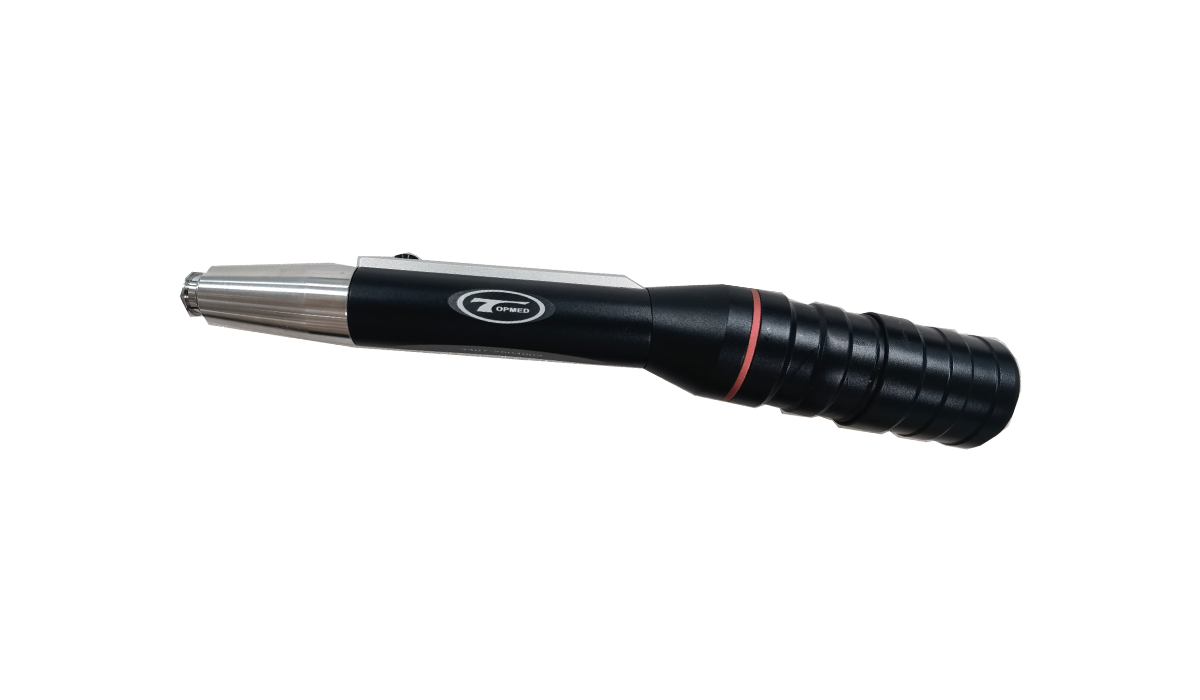

TM3407
Smart driver II
0-350 rpm 0.3Nm
System 3400
Main Accessories
TM34001
Ni-MH Battery
Voltage: 4.8V
Capacity: 700 mAh
TM34004
Aseptic transfer kit
TM34002
Ni-MH Battery Charger
TMXDH3400
Sterilization case
System 3400 -IV
The System 3400 - iv is a lightweight, pen-style surgical power system built for delicate procedures in orthopedics, maxillofacial, and neurosurgery. Its modular drivers and sagittal saw deliver speed, control, and adaptability — all in a compact, cordless form.
TM3401-IV
Smart sagittal saw
0-15000 osc/min
TM3407-IV
Screwing driver
forward and reserve function
0-350 rpm 1Nm
TM3402-IV
Smart driver
forward and reserve function
0-1100 rpm 0.5Nm
TM3409
Smart reciprocating saw
0-15000 osc/min
System 3400 - IV
Main Accessories
TM34001-II
Li-Ion Battery
Voltage: 7.4V
Capacity: 2800 mAh
TM34004-II
Aseptic transfer kit
TM34002-II
Li-Ion Battery Charger
TMXDH3400-II
Sterilization case
System 3500
Small Bone Micro Power System
Novel device dedicated forminimally invasive osteotomy
during treatment of deformity of hallux valgus.
Total podiatry solutions.
Completely satisfied power requests during Foot & Ankle surgeries.

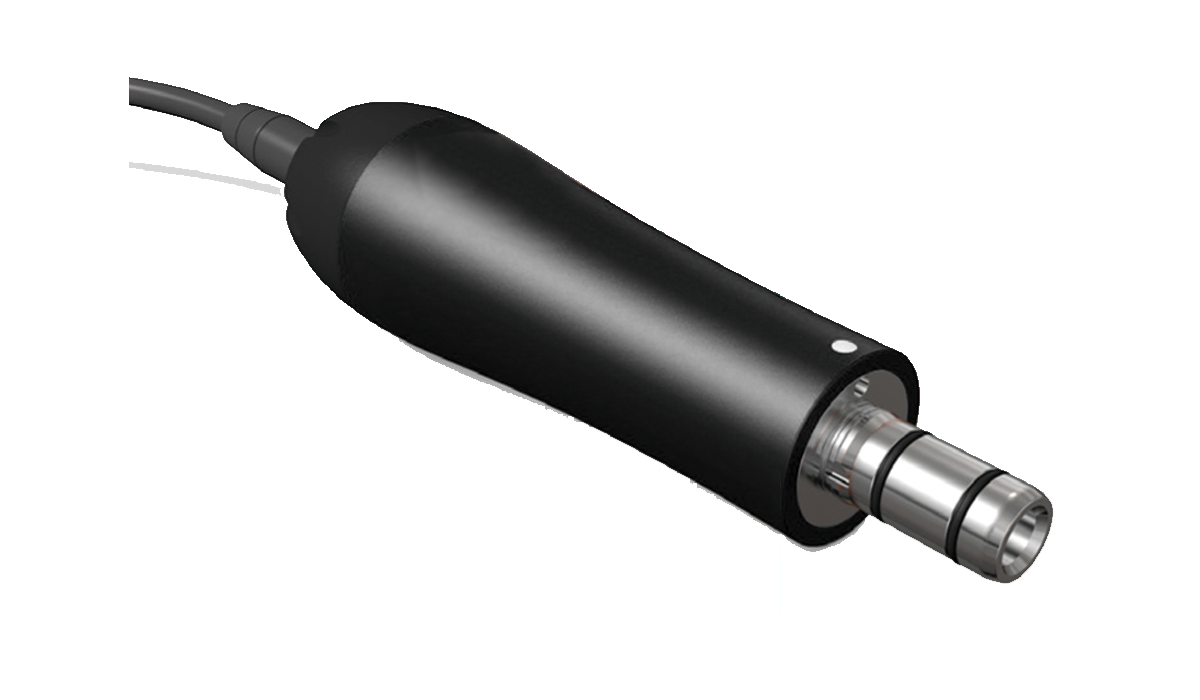

TM3500
Powertool
Being the most modular, it allows working easily on the forefoot and it is used with the whole range of handpieces.
Big hit with orthopedic surgeons, very handy and ergonomic, it is an essential tool in the operation room.
TM3501
Sawblade Handpiece
Low speed 8000 C/min
High speed 15000 C/min
TM35012
Smart Foot Control
The smart footcontrol is used with TM3500 powertool.
Easy to use thanks to its ergonomic design and an embedded electronic system.
TM3502
Percutaneous Handpiece
Low speed 8000 R/min
High speed 15000 R/min
TM3502SAO
AO reducer 4:1 Handpiece
Low speed 2000 R/min
High speed 3750 R/min
TM3513
Pin adaptor Handpiece (φ0.8-1.2)
Low speed 8000 R/min
High speed 15000 R/min
TM3507SAO
AO reducer 16:1 Handpiece
Low speed 500 R/min
High speed 937 R/min
TM3517
Angle adaptor
When install the angle transmission adapter,reducer 2:1
TMXDH3500
Sterilization Case
System 5800
TM5800 Orthomax Drill & Reaming System, advancing orthopedics with power, versatility and reliable performance.
Rotary handpieces allow for both high speed drilling and high torque reaming.
Offering two trigger designs for surgeon preference : Forward / Reverse & Oscillate
Indicating for Plating, Nail reaming and Recon Reaming Procedures
A wide assortment of quick connecting attachments can be selected.
Quick change drill/ream gear eliminates dedicated reaming attachments, reducing total weight and cost.

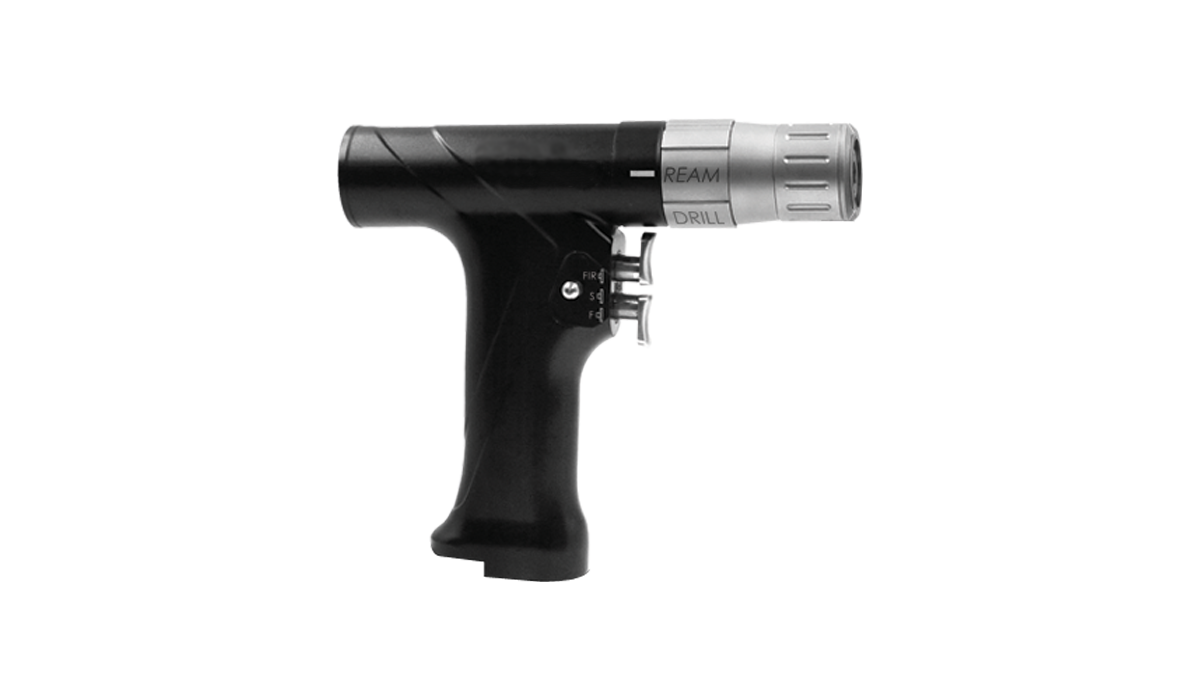

TM5800
OrthoMax5800 handpiece
Speed (rpm)：1100(DRILL)，230(REAM)
Weight(gr)：1100
Cannulation(mm)：5
TM5402B
Stryker/Zimmer
Dual Drill / Ream attachment
Speed (rpm)：1100(DRILL)，230(REAM)
Torque(Nm)：2.2(DRILL)，10(REAM)
Cannulation(mm)：4.4

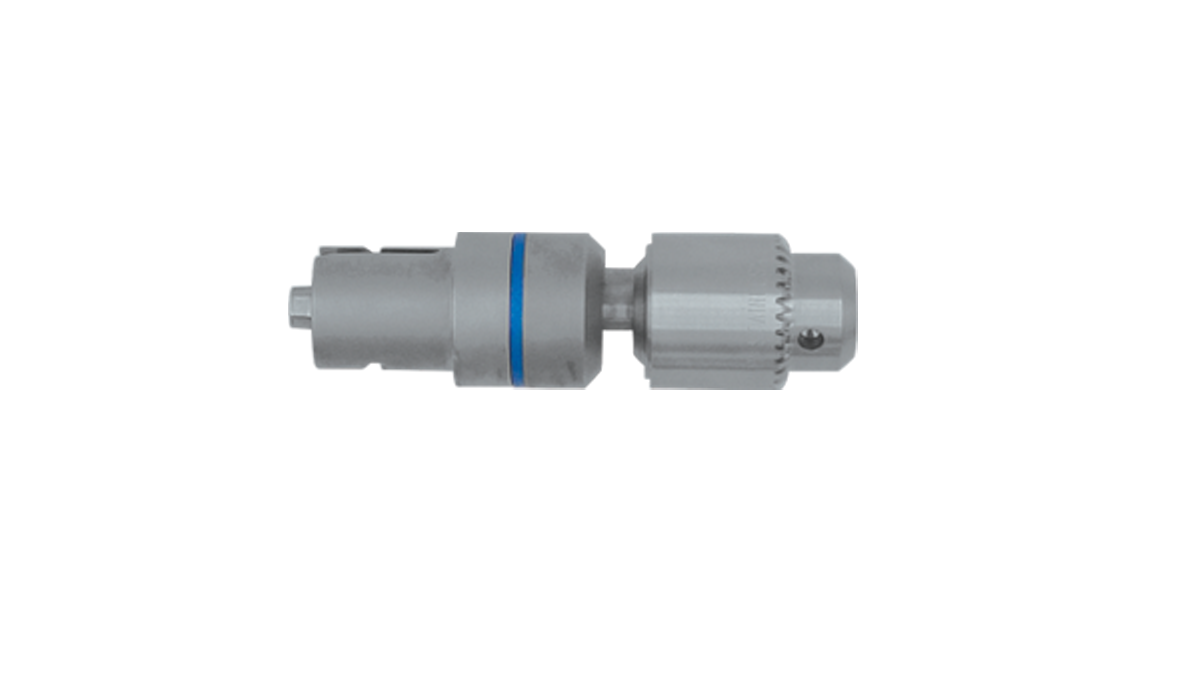

TM5402
Dual Drill / Ream attachment
Speed (rpm)：1100(DRILL)，230(REAM)
Torque(Nm)：2.2(DRILL)，10(REAM)
Cannulation(mm)：4.4

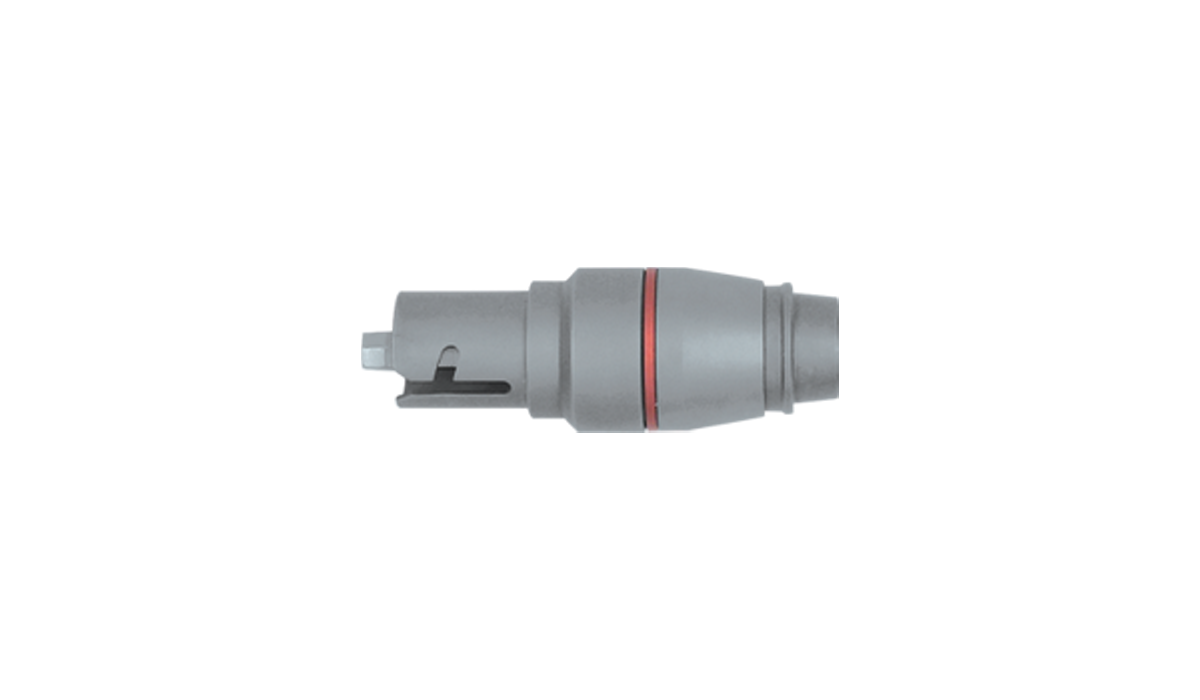

TM5402D
Large AO
Dual Drill / Ream attachment
Speed (rpm)：1100(DRILL)，230(REAM)
Torque(Nm)：2.2(DRILL)，10(REAM)
Cannulation(mm)：4.4
TM5402S
Hudson
Dual Drill / Ream attachment
Speed (rpm)：1100(DRILL)，230(REAM)
Torque(Nm)：2.2(DRILL)，10(REAM)
Cannulation(mm)：4.4

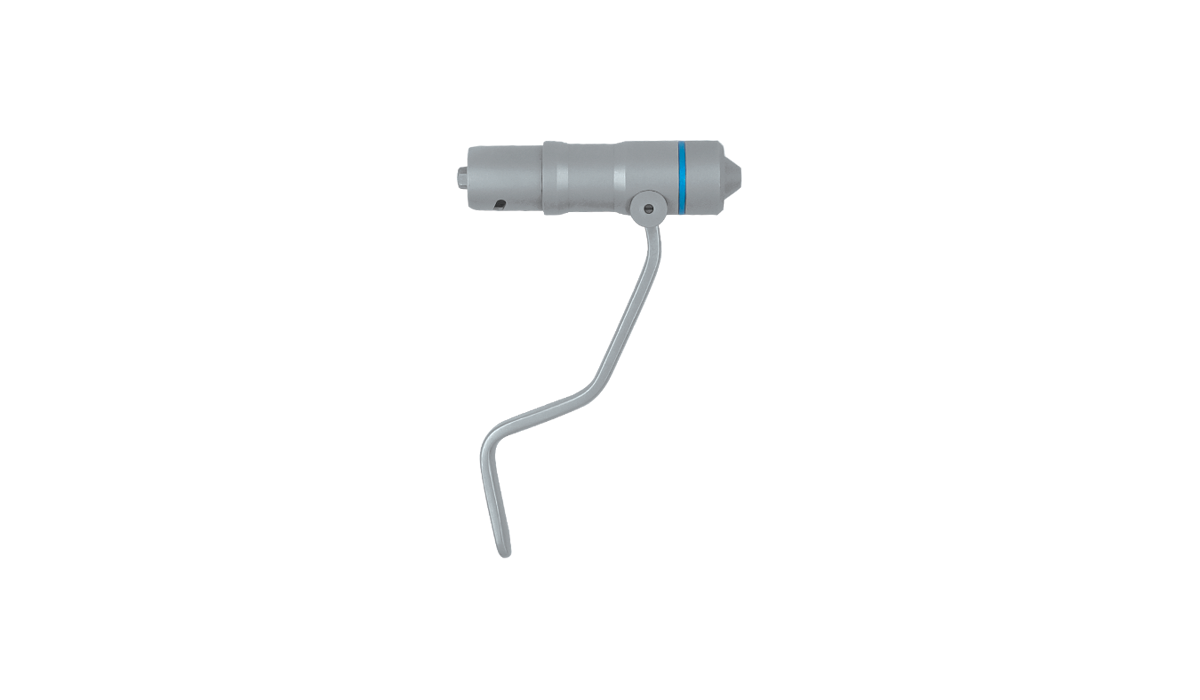

TM5813
K-wire driver
Speed(rpm)：1100(DRILL)
Cannulation(mm)：0.8-3.8

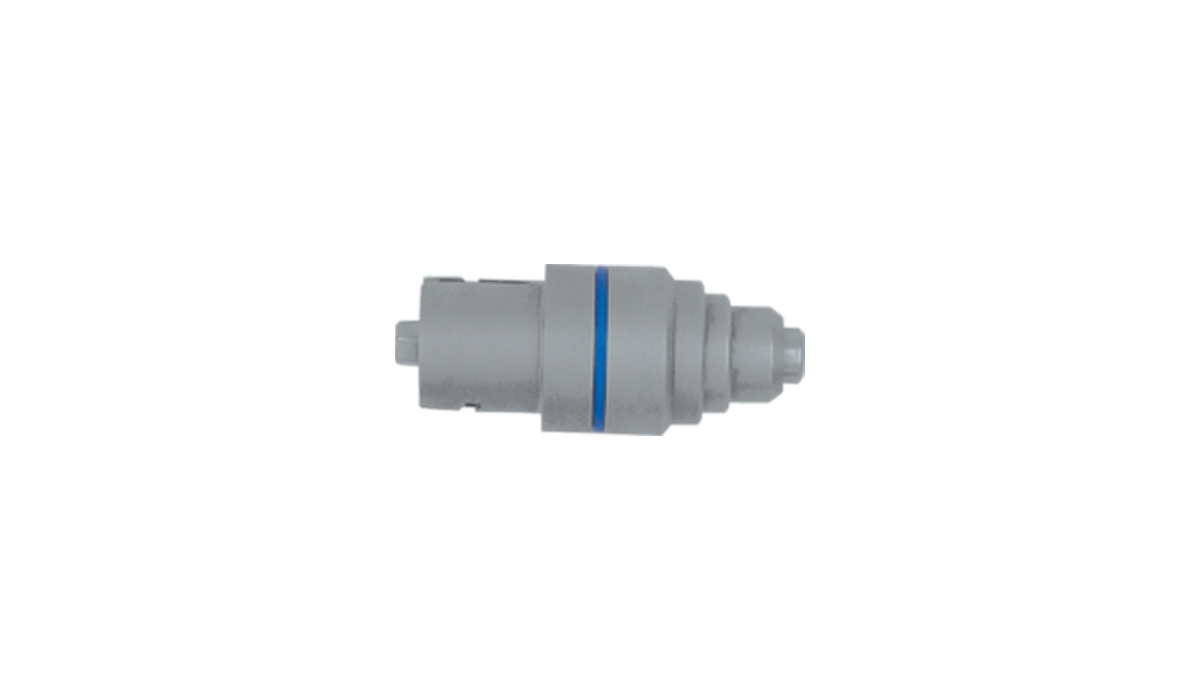

TM5402SAO
Small AO quick coupling
Speed(rpm)：1100(DRILL)，230(REAM)
Torque(Nm)：2.2(DRILL)，10(REAM)
System 5800
Main Accessories

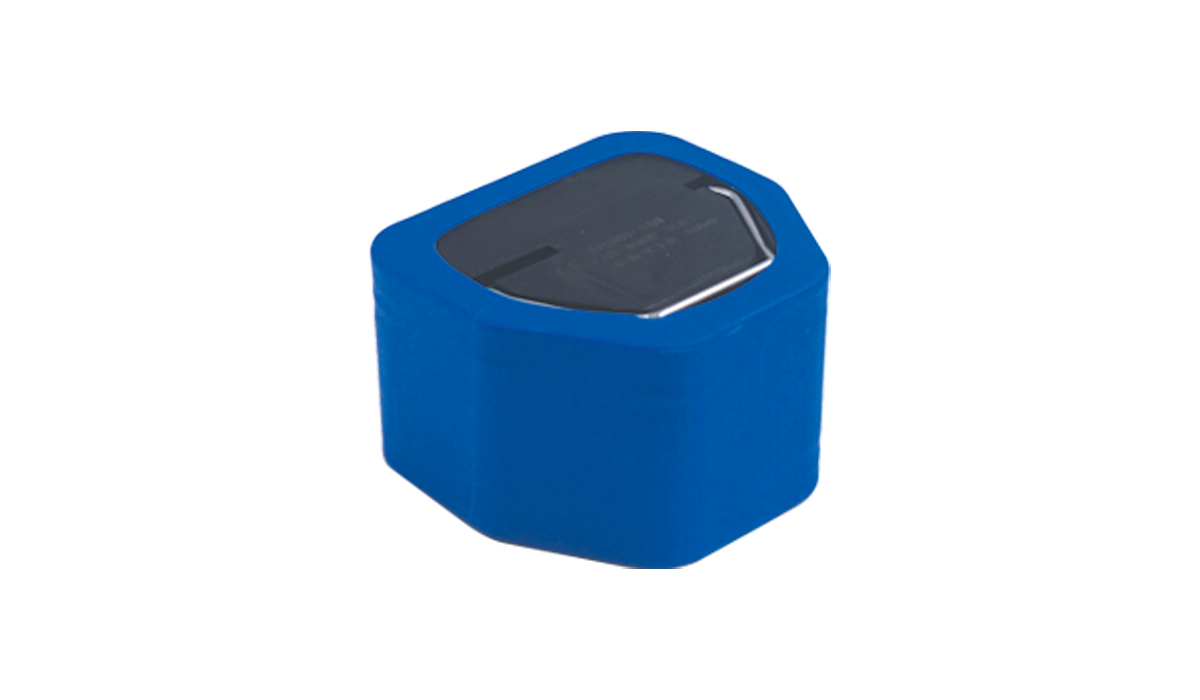

TM43001
Battery
Ni-MH 9.6V 1800mA/h

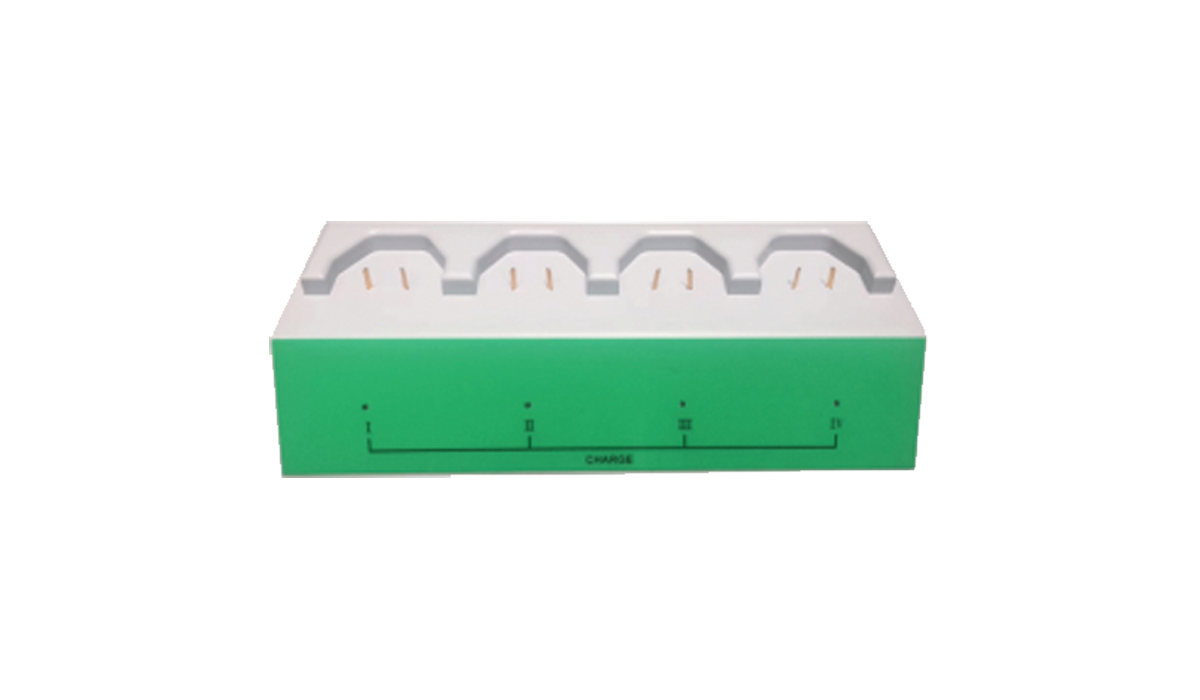

TM43002-4
Multi - charger
AC100 - 240V

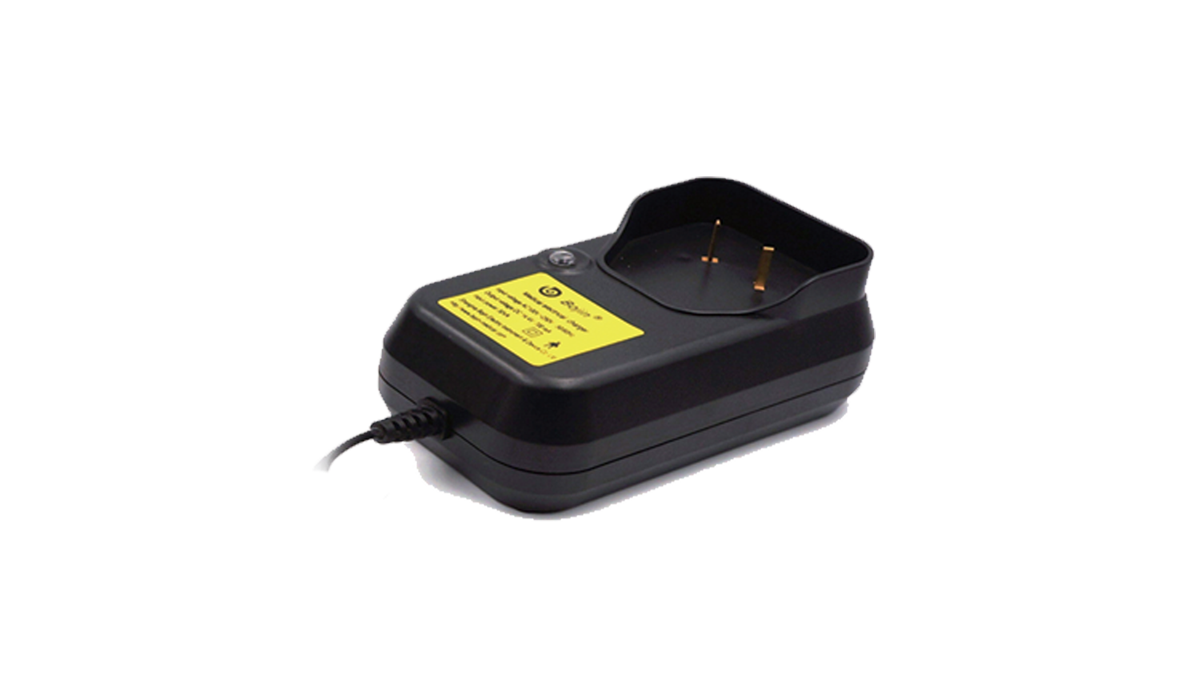

TM43002
Charger
AC100 - 240V

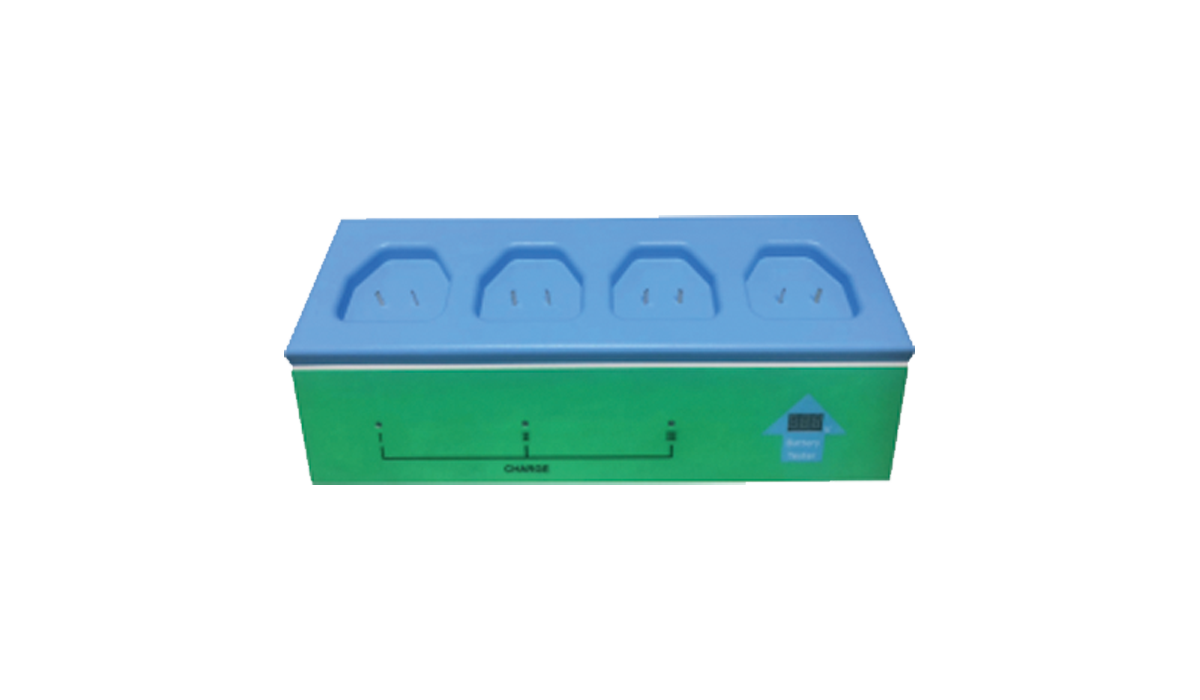

TM43002-4B
Multi - charger
AC100 - 240V

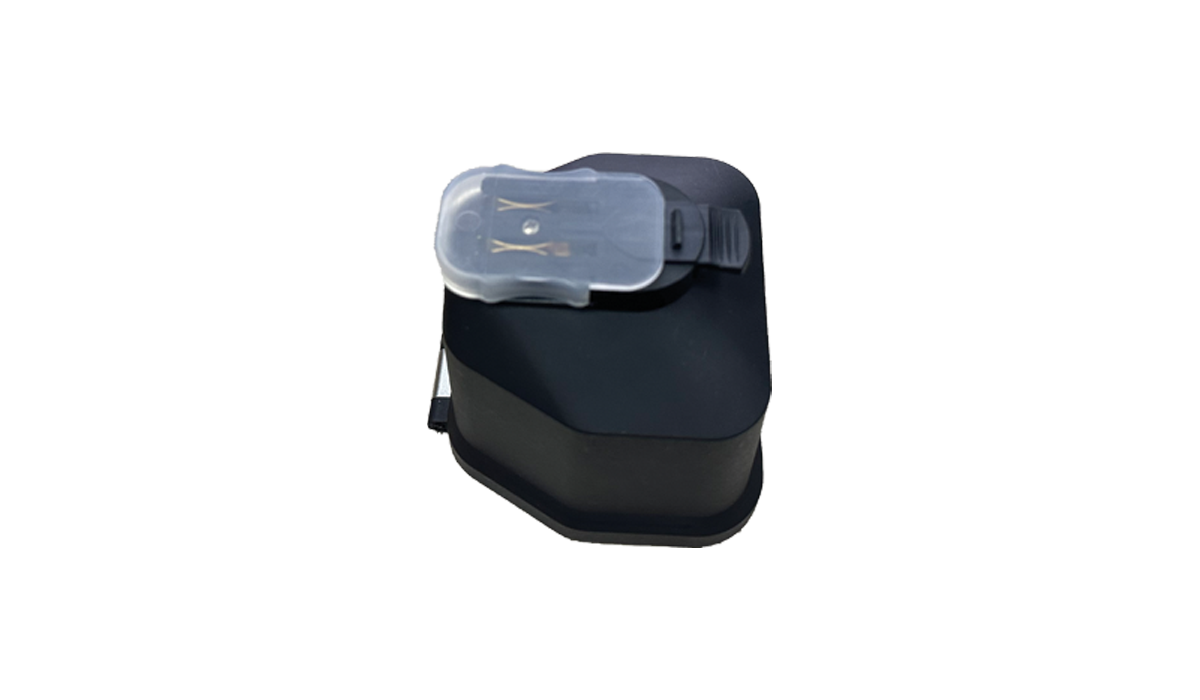

TM43003
Battery case
TM43005
Key

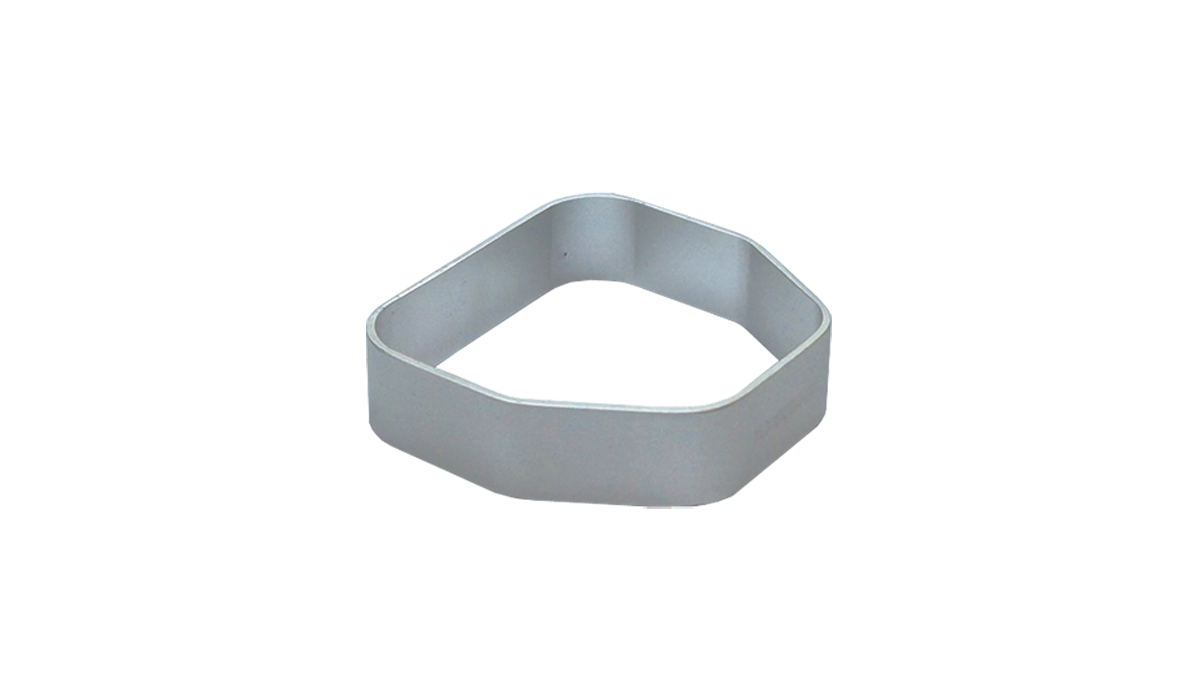

TM43004
Aseptic transfer kit
System 6600
MULTI-FUNCTIONAL SURGICAL POWER TOOLS
TM6600
Handpiece
OP/MAX OP：100W/200W
WEIGHT：730g
CANNULATION：4.0mm
TM6602
Bone drill attachment
SEPPD：0 - 1100 rpm
TORQUE：3.0Nm
TM6601H
Sagittal saw attachment
SEPPD：0 - 13000 cpm
TM6603B
Cannulated drill attachment
SEPPD：0 - 550 rpm
TORQUE：6.0Nm
CANNULATION：4.0mm
TM6604
Cranial drill attachment
SEPPD：0 - 1100 rpm
TORQUE：3.0Nm
TM6607B
Acetabulum reaming drill attachment
SEPPD：0 - 320 rpm，0 - 200 rpm
TORQUE：11.5Nm，17Mm
TM6605
Cranial bur attachment
SEPPD：0 - 13000 rpm
TORQUE：0.3Nm
TM6609
Reciprocating saw attachment
SEPPD：0 - 13000 cpm
TM6613A
K-wire driver
SEPPD：0 - 1100 rpm
TORQUE：3.0Nm
CANNULATION：0.6 - 2.0 mm
TM6613B
K-wire driver
SEPPD：0 - 1100 rpm
TORQUE：3.0Nm
CANNULATION：2.1 - 3.8 mm
System 6600
Main Accessories
TM54001
Lithium battery
Li-Ion 11.1V 4000mAh
TM54003
Battery case
TM54002
Charger
AC110 - 220V
TM54004
Aseptic transfer kit
TM43005
Key
